MEDIA FILTERS

Media filtration is used in the water treatment process to remove many solids from water or wastewater and requires little maintenance. Media filtration is a type of filter process when water passes through the filtration media it will remove solids from the liquid.

Water Wave Technologies has over 5 years of experience as a national supplier of water media filters for the enhancement of stunted water standard concerns as an outcome of elevated levels of suspended solids, sediments, turbidity, iron, and unwanted odors and taste from water. Our water filtration systems are designed to assure our customer requirements and specifications.

Water Wave Technologies multimedia water filter systems are preferabe complemented for use where stringent water quality standards are required or where higher levels of suspended solids are present. These applications can include re-use applications, water pre-treatment applications for reverse osmosis and deionization systems or as a pre-treatment system prior to a disposable bag or cartridge filters.

ADVANTAGES

• Thorough Filtration: The number of cartridges can be a good indicator of the efficiency of the filtration your water filter system can provide. Having multiple filters each dealing with a specific part of the filtration process, this type of water filter can surely offer a trustworthy thorough filtration.
• Multiple Targets: a multi-stage water filter has a higher capacity to remove harmful contaminants from your water. These filters target a wider range of dangerous substances. This means that by installing a quality multi-stage filter system you won’t have to worry about invisible chemicals and other contaminants adversely affecting your and your family’s health.
• Another important advantage is that multi-media water filters can explicate water at a much higher flow rate than a single-media sand filter (5.5 to 8 gallons per minute, as compared to 1.5 to 2.5 gallons per minute in a 12 inch diameter tank). This is 14 to 15 gpm per square foot of bed area, as compared to 2 gpm per square foot of bed area. This is a very important difference in the production of filtered water.

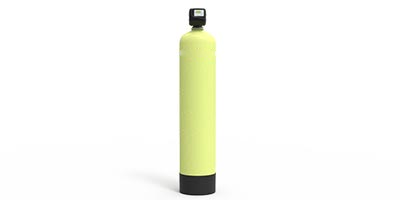

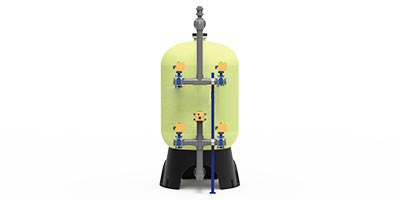

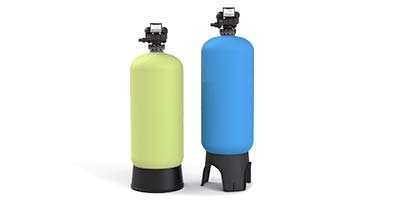

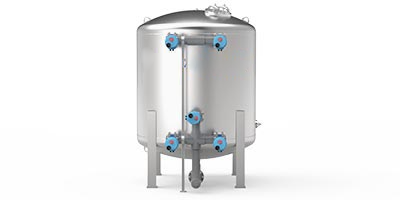

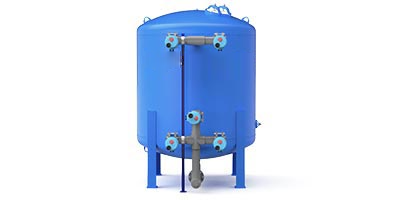

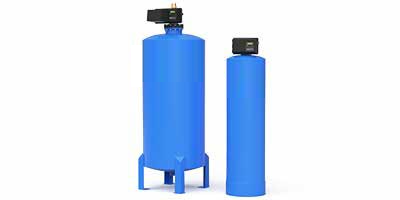

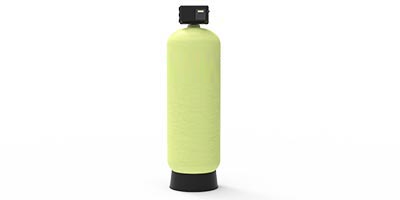

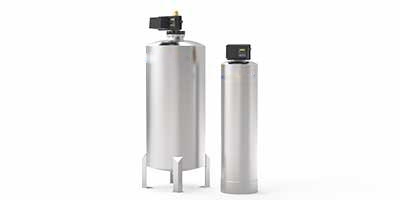

• Water Wave Technologies’s multi-media water filters (MF-1100, MF-1000, MF-600, MF-500 MF-450, MF-410 MF-400 Series) clarify water by removing sediment, turbidity, iron, unpleasant tastes and odors, suspended particles, and unwanted color, all of which are commonly found in surface water. They can be used in a variety of service conditions including, but not limited to: industrial, municipal, and institutional applications.

Media filters consist of a tank, a filter medium, a support system, and an underdrain. The filter medium is usually 24 to 36 inches deep and can be silica sand, aluminum silicate, or anthracite. The tank encloses the filter medium; the support system, usually gravel, prevents the medium from being washed out of the device. Water enters the filter tank through the top and percolates through the medium, which traps any suspended solids. Treated water exits the device via the underdrain. Unlike some cartridge sediment filters, media filters can be cleaned and reused.

• BENEFITS OF MULTI MEDIA WATER FILTERS:

  Multi-media filtration permits delivery of high quality filtered water at much faster flow rates, as compared to a conventional sand filter.

  In a conventional sand filter, lighter and finer sand particles are found at the top of the filter bed, and coarser, heavier sand particles remain at the bottom after backwashing. Additionally, multi media water filters function for an extended amount of time in comparison to traditional sand filters, since they are able to trap sediment and particles throughout the entire filter bed. This filtration process creates cleaner water much at a much faster rate than conventional sand filtration. The media filter comes complete with 5 valves and automatic controller to accomplish the backwash cycles.
